Grooving Machine For Notching V Type Groove

Grooving Machine For Notching V Type Groove
Grooving Machine For Notching V Type Groove
Grooving Machine For Notching V Type Groove Grooving Machine For Notching V Type Groove Grooving Machine For Notching V Type Groove Grooving Machine For Notching V Type Groove Grooving Machine For Notching V Type Groove

Large Image :  Grooving Machine For Notching V Type Groove

Product Details:
Place of Origin: CHINA
Brand Name: WELLMARK
Certification: CE
Model Number: WM-1200A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 5-8 workdays
Payment Terms: L/C, T/T
Supply Ability: 1 set per 15 working days

Grooving Machine For Notching V Type Groove

Description
After-sales Service Provided: Video Technical Support Application: Machinery & Hardware
Condition: New Voltage: 380V50HZ
Automatic Grade: Automatic Driven Type: Electric
Warranty: 1 Year Advantage: Knife With Digital Indicator,High Speed
High Light:

2KW Manual Plate Grooving Machine

,

Notching V Type Grooving Machine

Grooving Machine For Notching V Type Groove

Automatic Grooving Machine catalog.pdf





Product Feature



1. Slot effect: no burrs ,no dust, V Groove surface is smooth.

2. Environmental protection and energy saving: the total power consumption is 2.0 kw.been cut V groove material can recycle in whole( the cost can equal to power cost plus cutting tool cost) and low noise.

3. Production efficiency:manual plate feeding speed 8 hours can produce about 10000 boxes.

4. Durable cutting tool:with special knife grinder (simple),grind a knife only need 2 minutes,the client may sharpen yourself.

5. Adjustable cutter angle: two pieces of independent blade and fixture,different angles without customized blades,machine can adjust itself ,different cardboard thickness without adjustment can be slotted,use very convenient.



Techical Parameters



Model WM-1200A
Roating speed 30m /min
Power 2.0KW/220V/50HZ/1Phase
Deep of groove 1~4mm
Max. width of each group 900 mm
Max. width of board 800 mm
Feeder power 0.18 KW
Speed of feeder 0~180pcs/min(adjust)
Board specification 120~430mm
Travel of feeder 185mm
Power of conveyor belt 0.18 KW
Dimension L1780×W1680×H1480 mm

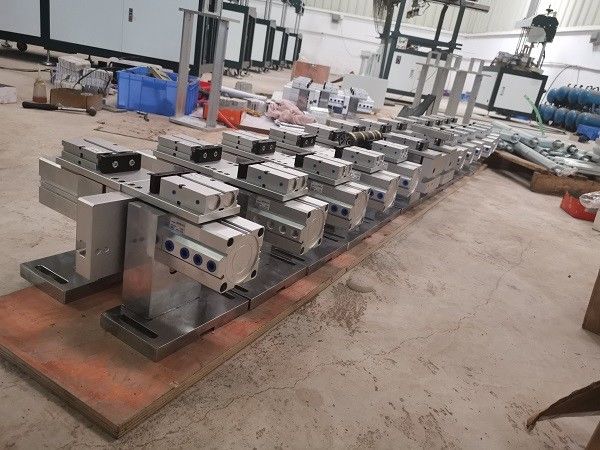

Work Shop Image



Grooving Machine For Notching V Type Groove 0

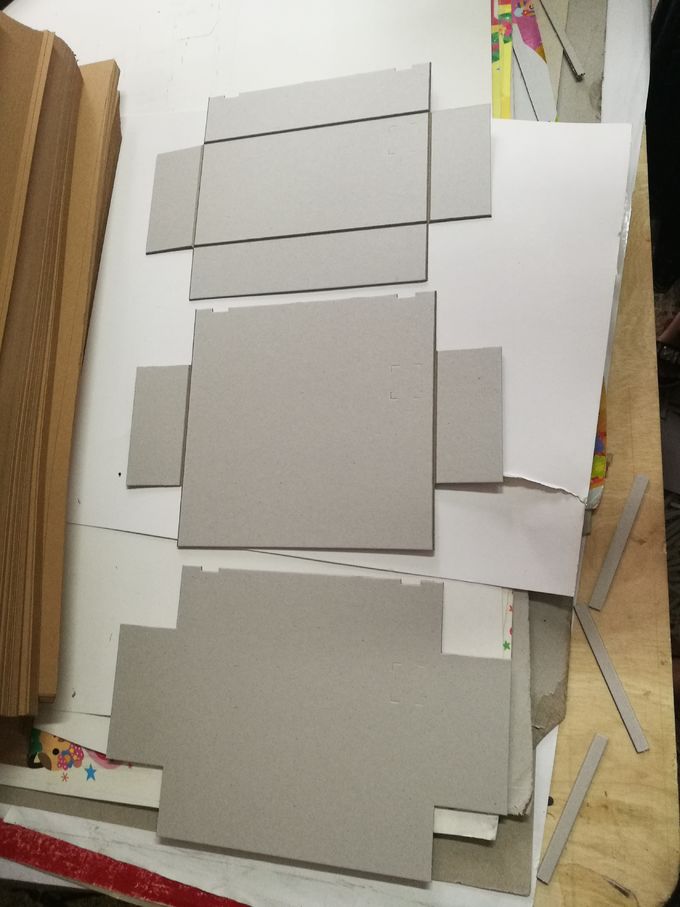

Product Application



Grooving machine belong to the Gift box package production line equipment. The machine is special designed for notching V type groove, use for industry-cardboard, Ash-cardboard, MDF board and other several of cardboard, to make it suitable for box or other packaging making.

Suitable for High quality package, Gift Box, Jewelry boxes, Watch packaging, mobile phone boxes, wine boxes, Storage box, shirt and shoes boxes, make-up, toiletry boxes, biscuits and cakes boxes, note book cover, book shape boxes, hardcover, file folders, display, game boards, display stands, posters and calendars, etc.

Grooving Machine For Notching V Type Groove 1



Our Exhibitions



We attended at least three oversea exhibitions every year to show our products to clients, warmly welcome to visit our booth in the exhibitions.



Grooving Machine For Notching V Type Groove 2



Frequently Asked Questions



Q1. What is your terms of packing?
A: Generally, we pack our goods in plywood box. Suitable for exporting.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos and video of the products and packages before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CIF.

Q4. How about your delivery time?
A: Generally, it will take 7 to 15 days after receiving your down payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to my requests?
A: Yes, we can produce according to your requests. We can design and develop the machine.

Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
