Product Details:
|
| After-sales Service Provided: | Overseas Service Center Available | Type: | Rotary Slotting Machine/corrugated Carton Slotting Machine |
|---|---|---|---|
| Application: | Machinery & Hardware | Automatic Grade: | Automatic |
| Driven Type: | Electric | Warranty: | 1 Year |
| Function: | V Or U Grooving Machine | Advantage: | Knife With Digital Indicator |
| Highlight: | auto v grooving machine,grooving machine,automatic grooving machine |
||

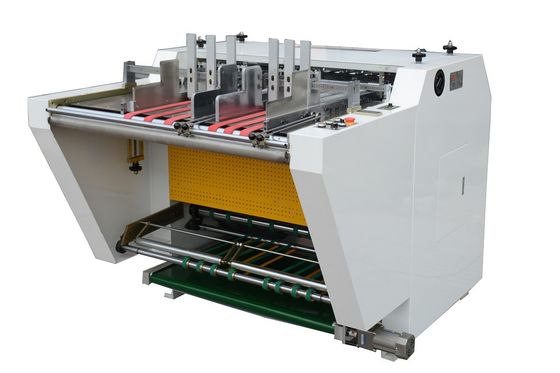

V Grooving Machine For Cardboard
Automatic Grooving Machine catalog.pdf
Machine details

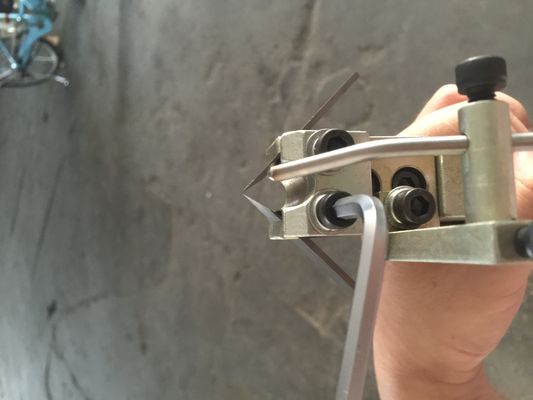

1. Each cutting blade could move left and right by itself.
2. Double sides position plate are adjustable. The can ensure the precision.
3. The belt press wheel could adjust the pressure of belt.
4. The counter is used for record the number of production.
5. The wheel is use for adjust grooving degree from 80-140.
6. Scrap remove equipment.
7. Special use knife grinder, usually grind one piece of cutting blade need 2 minutes only.
Machine Application
Grooving machine belong to the Gift box package production line equipment. The machine is special designed for notching V type groove, use for industry-cardboard, Ash-cardboard, MDF board and other several of cardboard, to make it suitable for box or other packaging making.
Suitable for High quality package, Gift Box, Jewelry boxes, Watch packaging, mobile phone boxes, wine boxes, Storage box, shirt and shoes boxes, make-up, toiletry boxes, biscuits and cakes boxes, note book cover, book shape boxes, hardcover, file folders, display, game boards, display stands, posters and calendars, etc.
Technical Parameter
| Model | WM-1200A |
| Widest(W) | 900mm |
| Narrowest(W) | 50mm |
| Longest(L) | 650mm |
| Shortest(L) | 100mm |
| Max numbers of Groove | 8 |
| Distance of each groove | 0-900mm |
| Thickness of Paperboard(T) | 1.0-4.0mm |
| Speed | 20-35m/min |
| Voltage | 220V/50Hz |
| Power | 2kw |
| Weight | 1300kgs |
| Machine Size | L1750*W1600*H1500mm |
Packing and Shipping
We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage.We can go to your country to debug machine when you have questions can not resolve,but you must pay 100usd/day to our engineer.
Look forward to long term cooperation with customers, we will make best service and aftersales service for all of our customers.
