Automatic Grooving Machine / Belt Feeding Notching Machine For Paper Card

Basic Information
Place of Origin: China
Brand Name: wellmark
Model Number: WM-1200A
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: wooden case
Delivery Time: one week
Payment Terms: L/C, T/T
Supply Ability: 1 set per 20 working days
Detail Information
Product Name: Automatic Grooving Machine Application: Paper Card, MDF Board
Function: V Or U Grooving Machine Voltage: 380V/50HZ
Driven Type: Electric Warranty: 1 Year
High Light:

Paper Card Automatic Grooving Machine

,

Belt Feeding Automatic Grooving Machine

,

Paper Card Automatic Notching Machine


Product Description

Automatic Grooving Machine / Belt Feeding Notching Machine For Paper Card

Automatic Grooving Machine catalog.pdf



Product Description

Automatic Grooving Machine is used for industrial cardboard, MDF board, and cardboard grooving. This machine adopts belt feed paper to grooving, 600mm diameter large drum with adjustable high-speed belt, usually with 8 slotting knives for grey cardboard, also can customize 12 slotting knives. High-speed stable dust-free.



Product Character



1. Each cutting blade could move left and right by itself.

2. Double sides position plate are adjustable. The can ensure the precision.

3. The belt press wheel could adjust the pressure of belt.

4. The counter is used for record the number of production.

5. The wheel is use for adjust grooving degree from 80-140.

6. Scrap remove equipment.

7. Special use knife grinder, usually grind one piece of cutting blade need 2 minutes only.

8. Cutting blade and holder.

9. Standby belt and 4kw adjustable speed Frequency converter.



Technical Parameter



Model WM-1200A
Widest(W) 900mm
Narrowest(W) 50mm
Longest(L) 650mm
Shortest(L) 100mm
Max numbers of Groove 8
Distance of each groove 0-900mm
Thickness of Paperboard(T) 1.0-4.0mm
Speed 20-35m/min
Voltage 220V/50Hz
Power 2kw
Weight 1300kgs
Machine Size L1750*W1600*H1500mm

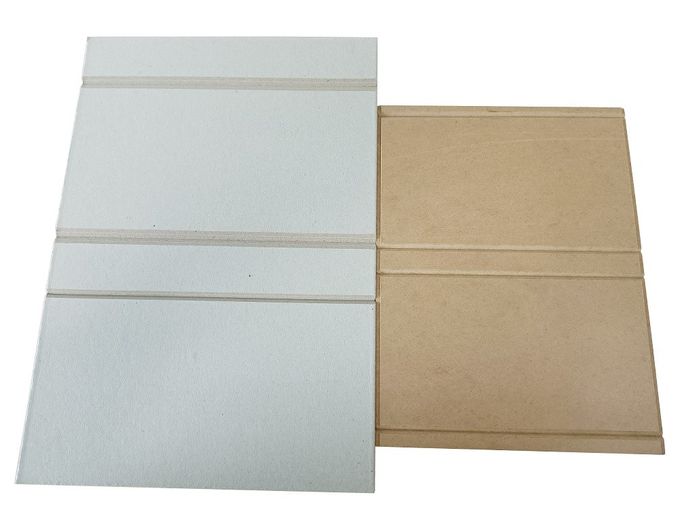

Product Application

Automatic Grooving Machine / Belt Feeding Notching Machine For Paper Card 0



Packing and Shipping

Automatic Grey Cardboard Grooving Machine 1
